The 5000-Series cylindrical lever locks are designed for high traffic applications. They are tested to last more than 4 million cycles. These heavy duty locks come with a popular flat rose design and a lever that is compliant with ADA and other accessibility codes. Compatible with many retrofit cylinders such as LSDA C500, Ilco, GMS and most High-Security brands including Medeco, Assa, Schlage Primus, Kaba Peaks, etc.

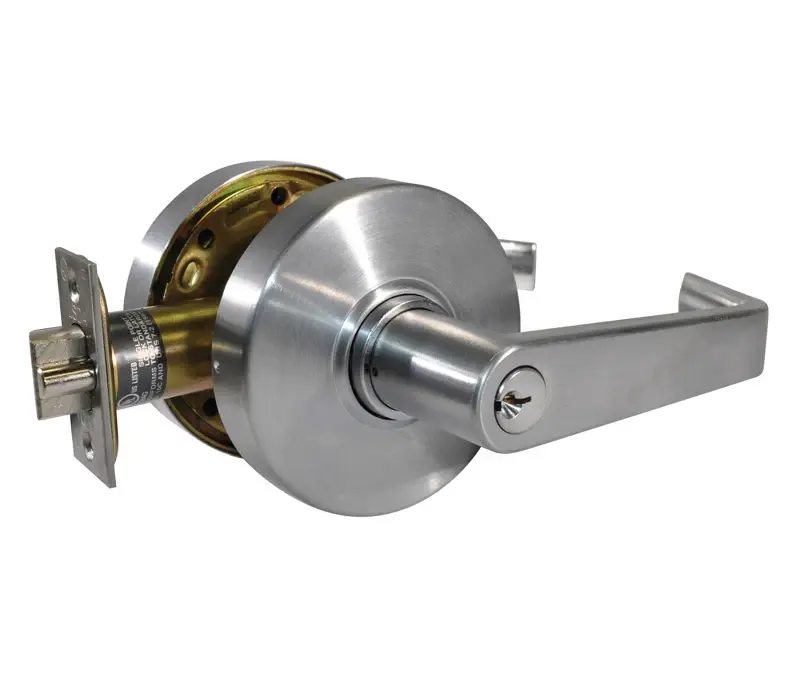

GRADE 1 STOREROOM LEVER LEXINGTON SATIN CHROME SCHLAGE C 103380 - 5400LE26D

$208.14Price
  • Combinating Keyed Different
    Design Style Lexington (LE)
    Door Prep 2-1/8" diameter cross bore; 1" edge bore
    Door Thickness 1-9/16" - 2-1/8"
    Function Storeroom
    Grade Grade 1 - Heavy Duty Commercial
    Handing Field Reversible
    Included in package Installation Instructions 2 Keys
    Industry Finish US26D/626 Satin Chrome
    Keyway Schlage C
    Knob/Lever Lever
    Latch/Bolt/Backset 2-3/4"
    Manufacturer LSDA
    Pinning 6-Pin
    Series 5000
    Standards / Ratings ANSI/BHMA 156.2 Series 4000 Grade 1; Latch is UL Listed (USA and Canada) for 3-hour fire doors
    Strike ASA 4-7/8"
    Thru Bolting Yes
    Type - Additional Info Cylindrical
